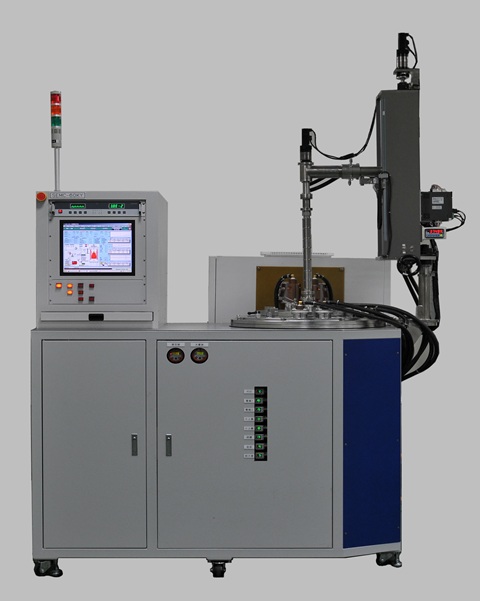

1.
Technical Characteristics:
|
1.1
Principal Methodology |
KY |
|
1.2 Weight of charge raw material |
50 ~ 65
kg |
|
1.3 Maximum temperature in the crucible |
2200oC |
|
1.4 System dimension: |
− 2100mm
(L)* 2050mm
(W)* 3200mm
(H)
− Ceiling
height: ( 4m
). |
2. Power:
|
2.1 Power
consumption, KW, peak |
80 |
|
2.2 Primary winding voltage, V |
380 |
|
2.3 Frequency, Hz |
50/60 |
3. Cooling Water and Gas:
|
3.1 Cooling water
consumption, not above, m3/h |
6 |
|
3.2 Water pressure with the consumption 6m3
/h, kg/cm |
2 to 3 |
|
3.3 Water temperature at the input, ℃ |
~25 oC±1 oC |
|
3.4 Water temperature at the output, ℃
|
~37 |
|
3.5 Cooling water debit |
150 lpm
Cooling water should be demineralized, should not contain aggressive
impurity, especially ions of chlorine.
Cooling
water will be anti-rust,alga
removal , dust clear . |
|
3.6 Emergency Cooling Water |
100 lpm minimum, for
48 hours minimum
|
|
3.7 Inert gas debit |
0.25 cubic meter/cycle |
|
3.8 Nitrogen gas |
purified / supplied under 0.5х10E5Pa of
pressure ( 1.8kg
/cm2) |
|
