SEMC-30KY 藍寶石長晶爐



SEMC-30KY

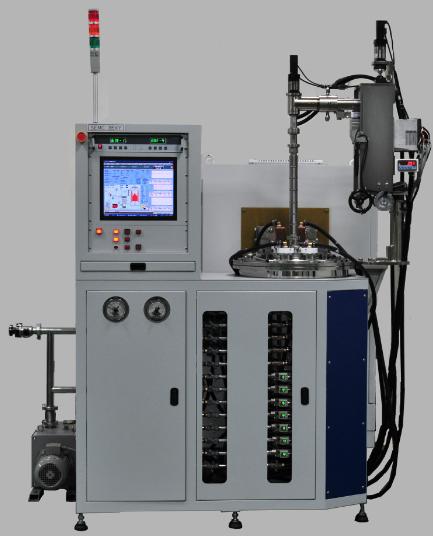

SEMC-35KY

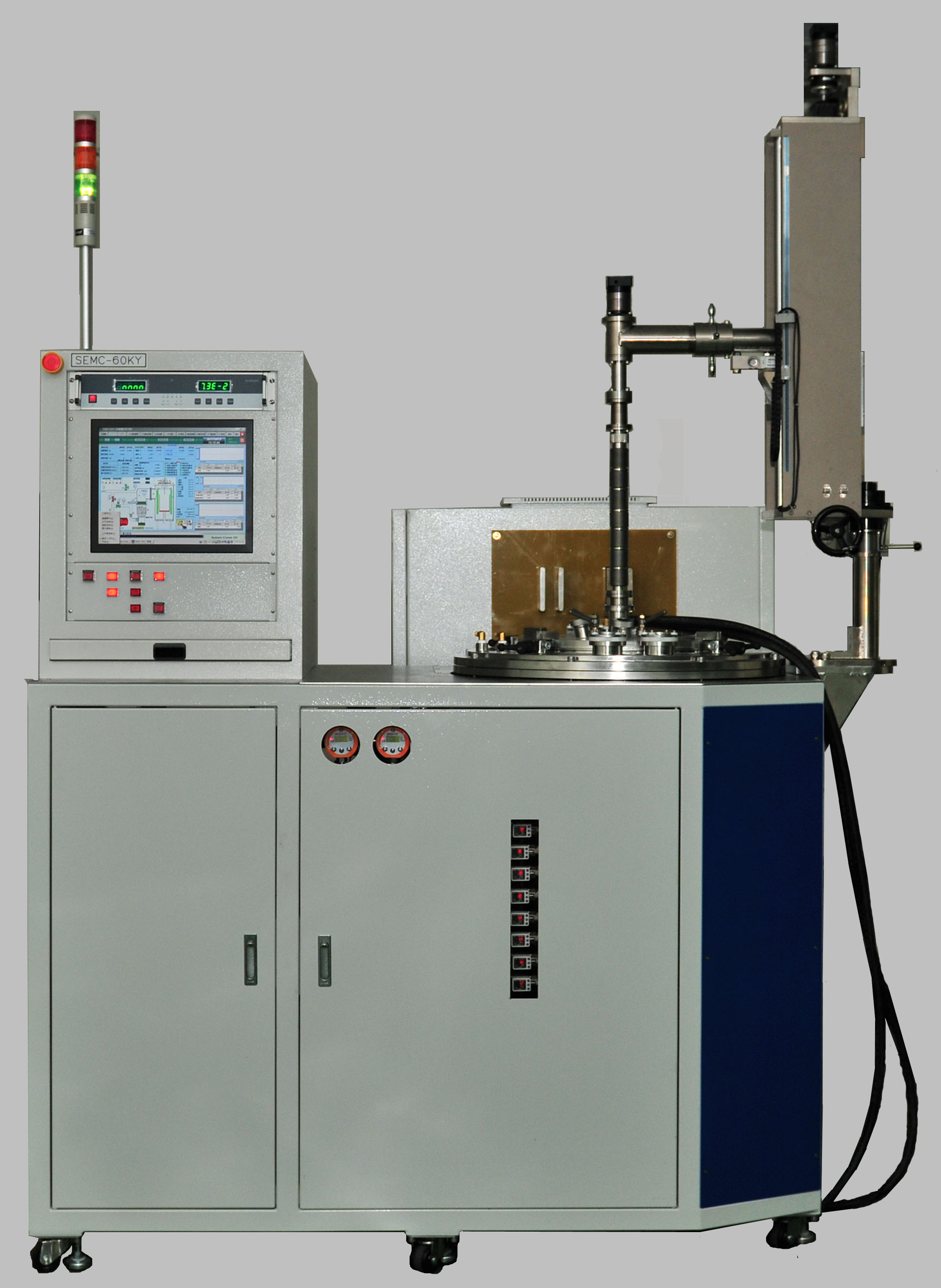

SEMC-60KY



SEMC-85KY





























1. Technical Characteristics:

1.1 Principal Methodology

KY

1.2 Weight of charge raw material

25 ~ 30 kg

1.3 Maximum temperature in the crucible

2200oC

1.4 System dimension:

1800mm (L)* 1900mm (W)* 2300mm (H)

− Ceiling height: ( 4m ).

2. Power:

2.1 Power consumption, KW, peak

60

2.2 Primary winding voltage, V

380

2.3 Frequency, Hz

50/60

3. Cooling Water and Gas:

3.1 Cooling water consumption, not above, m3/h

6

3.2 Water pressure with the consumption 6m3 /h, kg/cm

2 to 3

3.3 Water temperature at the input,

~25 oC±1 oC

3.4 Water temperature at the output,

~30

3.5 Cooling water debit

150 lpm
Cooling water should be demineralized, should not contain aggressive impurity, especially ions of chlorine.

Cooling water will be anti-rust,alga removal , dust clear .

3.6 Emergency Cooling Water

100 lpm minimum, for 48 hours minimum

3.7 Inert gas debit

0.25 cubic meter/cycle

3.8 Nitrogen gas

purified / supplied under 0.5х10E5Pa of pressure ( 1.8kg /cm2)
